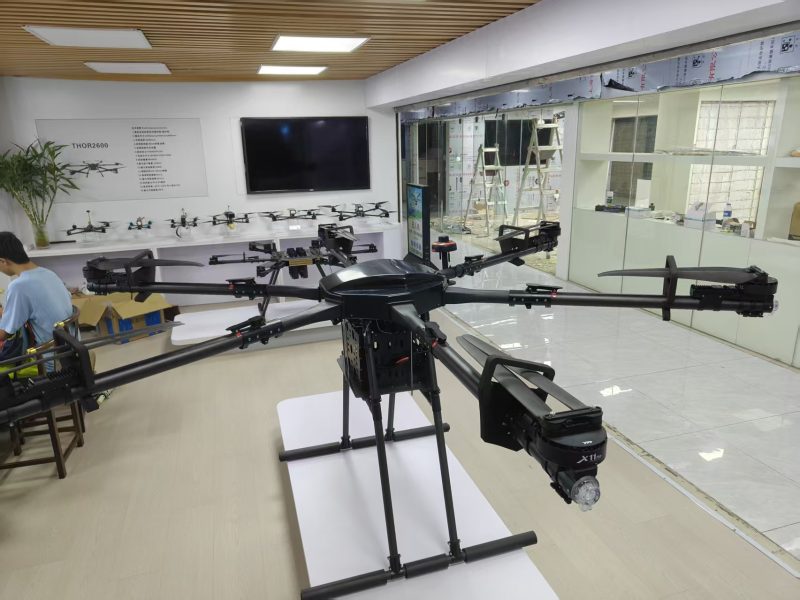

Heavy-lift 4-axis cargo drone with 100kg payload, 40km communication range, and 15-min loaded flight time for logistics and emergency delivery.
This 4-axis heavy-lift cargo transport drone is engineered for demanding logistics and emergency supply delivery missions. With a total take-off weight of 216kg and a 100kg payload capacity, it features a carbon fiber + aviation aluminum frame that folds to just 965×1260×870mm for transport. The drone is equipped with a dual RTK positioning system, Hobbywing H13 opposed motors, and supports operation at altitudes up to 4,500 meters. Optional accessories include an overload protection auto-release hook, high-power lighting module (300-2000W), and a soft-sling module with 20m auto-retraction synchronized with the ground station.
| Expanded Dimensions | 4290 u00d7 4290 u00d7 870 mm |
| Folded Dimensions | 965 u00d7 1260 u00d7 870 mm |
| Frame Material | Carbon Fiber + Aviation Aluminum |
| Total Take-off Weight | 216 kg |
| Max Payload | 100 kg |
| Flight Altitude | 0 u2013 4,500 m |
| Empty Cruise Speed | 25 m/s |
| Loaded Cruise Speed | 10u201315 m/s |
| Angular Rate | 120u00b0/s |
| Remote Control Flight Time | 45 min |
| 100kg Payload Flight Time | 15 min |
| Communication Distance | 40 km (sea level) |
| Motor | Hobbywing H13 Opposed Motors |
| Battery | 24S 32AH u00d7 4 Quick-Swap Battery Packs |
| Flight Controller | HB-S2e |
| Positioning | Dual RTK |
| Ground Station | G30-2.18V |
| Charger | 3.7kW Dual-Port High-Speed |
