Agile 4x4 light tactical vehicle with 125km/h speed, B5 ballistic protection, 10-person capacity, and off-road mobility for rapid deployment.

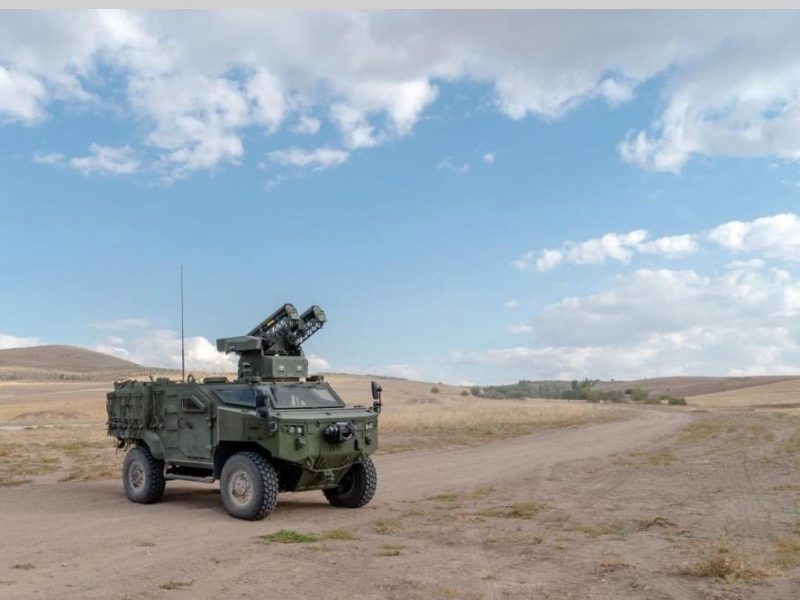

The Tianqi is a light-duty 4×4 personnel carrier designed for rapid deployment and off-road mobility. With a 10-person capacity and 6,300kg maximum weight, it features full-time four-wheel drive, double wishbone independent suspension, and a 6-speed manual transmission. The vehicle provides B5 ballistic protection (7.62mm steel core bullets at 100m) and can operate in temperatures from -41°C to +46°C, with altitude adaptation up to 5,000m.
| Drive Type | Full-time 4-wheel drive |
| Passenger Capacity | 10 persons |
| Suspension | Double wishbone independent suspension |
| Kerb Weight | 5,000 kg |
| Max Load Weight | 1,300 kg |
| Max Weight | 6,300 kg |
| Overall Dimensions | 5800 x 2400 x 2000 mm |
| Wheelbase | 4,000 mm |
| Max Speed | 125 km/h |
| Max Endurance | 700 km |
| Max Wading Depth | 1,100 mm |
| Approach Angle | 56u00b0 |
| Departure Angle | 46u00b0 |
| Max Gradeability | 60% |
| Static Rollover Angle | 45u00b0 |
| Operation Temperature | -41u00b0C to +46u00b0C |
| Altitude Adaptation | Operates at 5,000m altitude |
| Protection Level | B5 (7.62mm steel core @ 100m) |
| Transmission | 6-speed manual |
